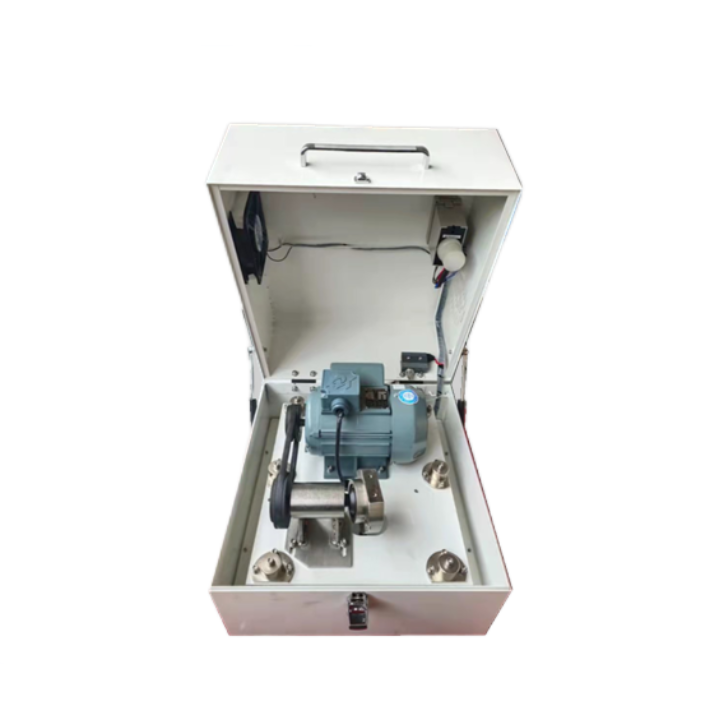

Small Lab High Speed Vibratory Ball Mill
Overview | The VBM-80 High Speed Vibratory Ball Mill is a high performance, compact instrument for the preparation of laboratory samples (small and micro quantities). |
How it works | The instrument has a rotating oscillating and vibrating three-dimensional motion during grinding, with a higher collision energy than other types of balls. |
Advantages | The instrument is small, light, efficient and inexpensive |
Scope of application | High speed vibratory ball mills are capable of ball milling or mixing various solids, suspensions and pastes with different particle sizes and materials by both dry and wet methods, and can be used for grinding, mixing and mechanical alloying of materials |
High speed vibratory ball mill diagram:
Technical parameters:
Model | VBM-80 |
Specification | 50ml,80ml |
Technical specifications | Maximum charge per jar: one third of the volume of the ball mill jar |
Feed size | <1mm |
Discharge size | Down to 0.1μm |
Oscillation frequency | 1200 cycles/min |
Timing range | 0~9999 sec and normally open gear |
Motor specification | Single phase 220V 180W |
Motor frequency | 50Hz |
Dimension | 405x365x260 (mm) |
Features | The high speed vibrating ball mill has an eccentric pendulum shaft, which produces an eccentric swing of the tank during the high speed operation of the motor; driving the whole support point frame to vibrate up and down, making the grinding process complete in a three-dimensional space of high speed swing and vibration. This greatly increases the speed and efficiency of grinding. |
Standard configuration:
Ball Mill Tank Material Type | Pictures |
80mL Stainless steel (1Cr18Ni9Ti) |
|
50mL Agate jar |
|
50mL Ceramic jar |
|
50mL Nylon jar |
|
Optional models:
50mL Polytetrafluoroethylene jar |
|
50mL Zirconia jar |
|
80mL Stainless steel vacuum jar |
|
Stainless steel plain jacket |
|
Vacuum stainless steel jar |
|
Each jar comes standard with a grinding ball of | 20 for Φ10mm ，4 for Φ20mm |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
